Macro Fiber Reinforced Concrete: When and Why to Use It

The construction industry is continuously seeking innovative solutions to improve concrete performance, enhance durability, simplify construction processes, and optimize project costs.

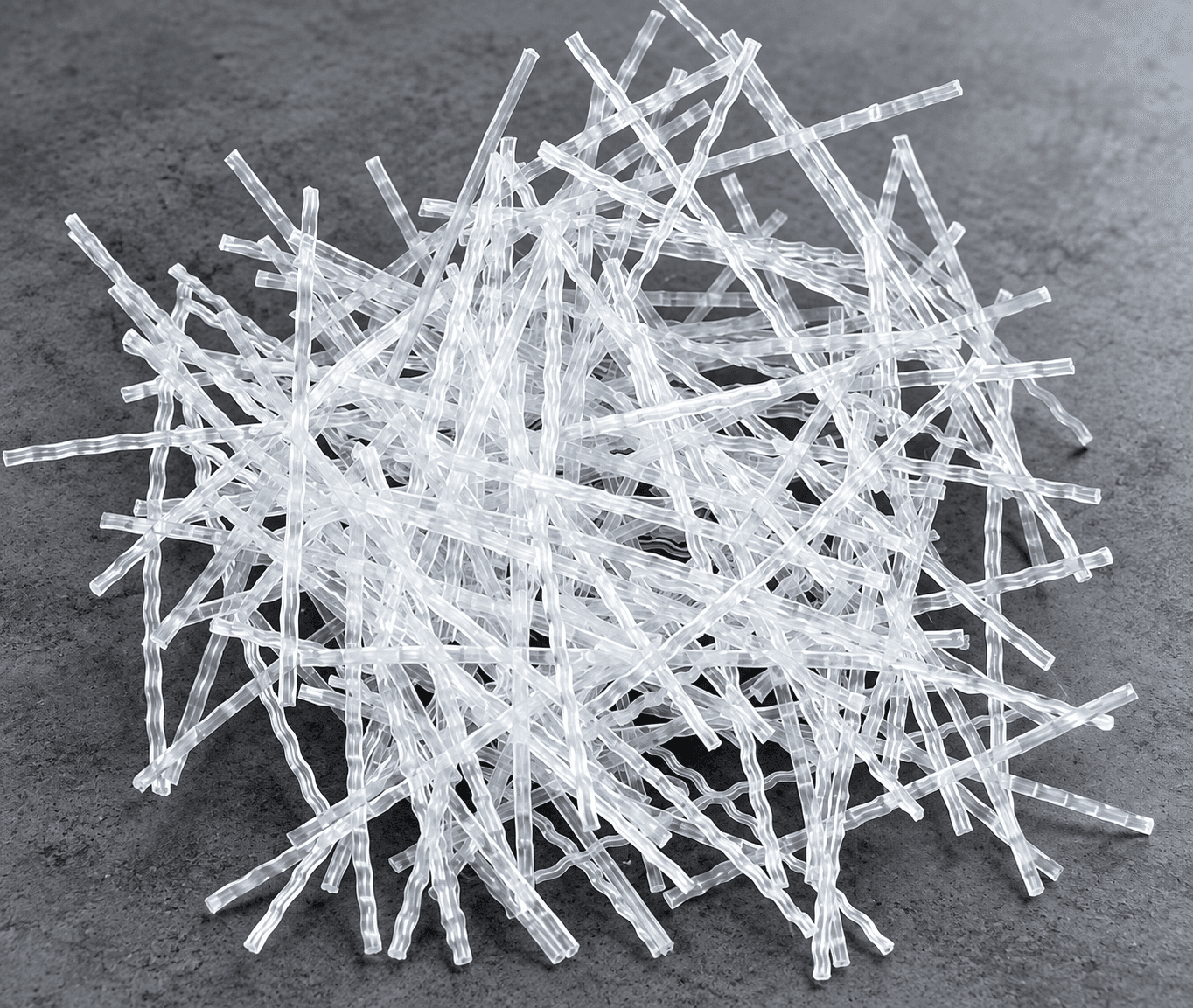

X-Mix PMF, developed by NCC X-Calibur, is a high-performance structural synthetic macro fiber designed to provide distributed reinforcement within concrete and replace steel wire mesh in suitable applications.

By incorporating X-Mix PMF into concrete mixtures, engineers and contractors can benefit from three-dimensional fiber distribution, corrosion-free reinforcement, and improved construction efficiency when the product is selected and designed appropriately.

X-Mix PMF is particularly suitable for applications involving industrial floors, concrete pavements, storage areas, and other structures where distributed fiber reinforcement can contribute to the required performance.

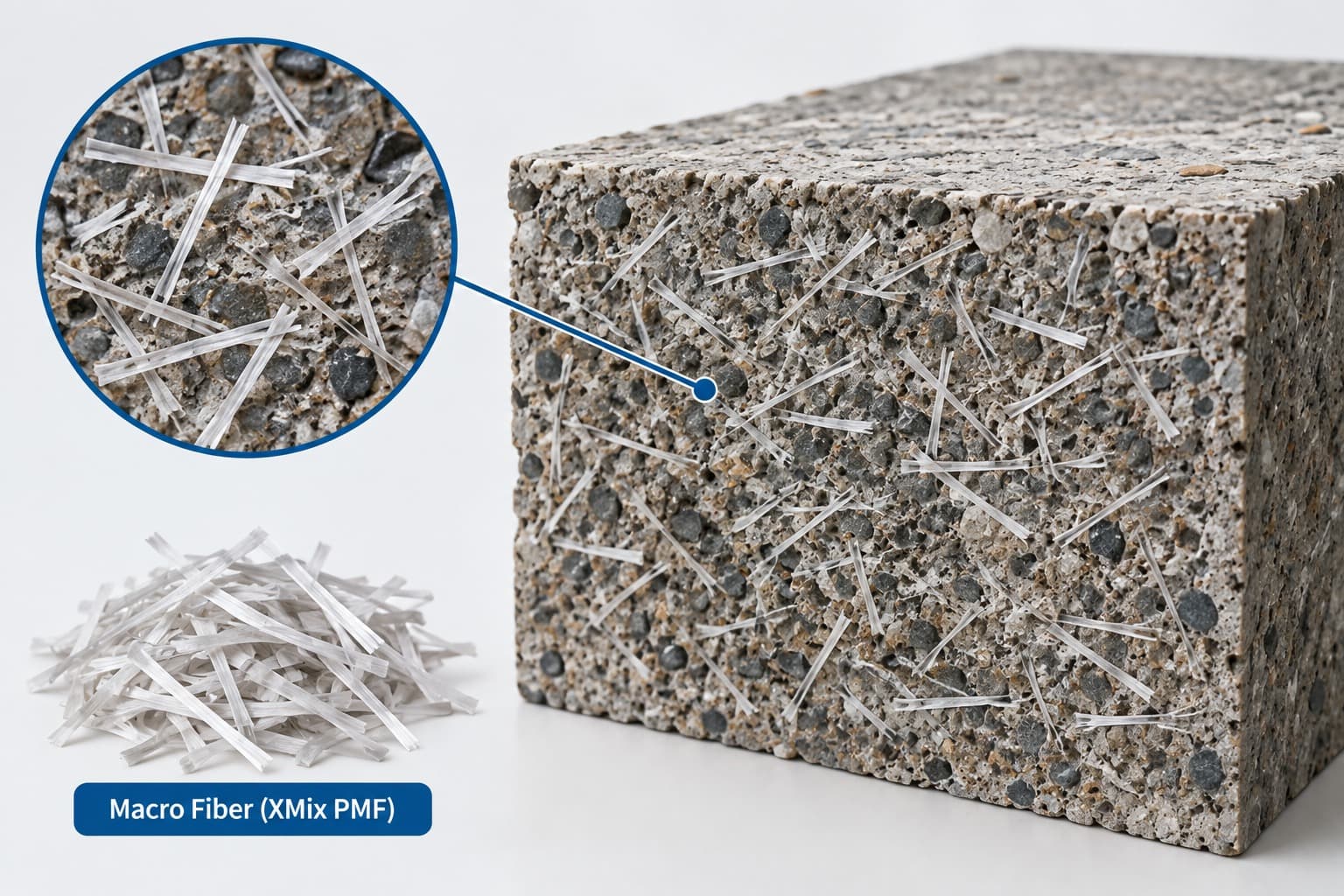

Macro Fiber Reinforced Concrete (MFRC) is concrete containing structural fibers that are distributed throughout the concrete matrix.

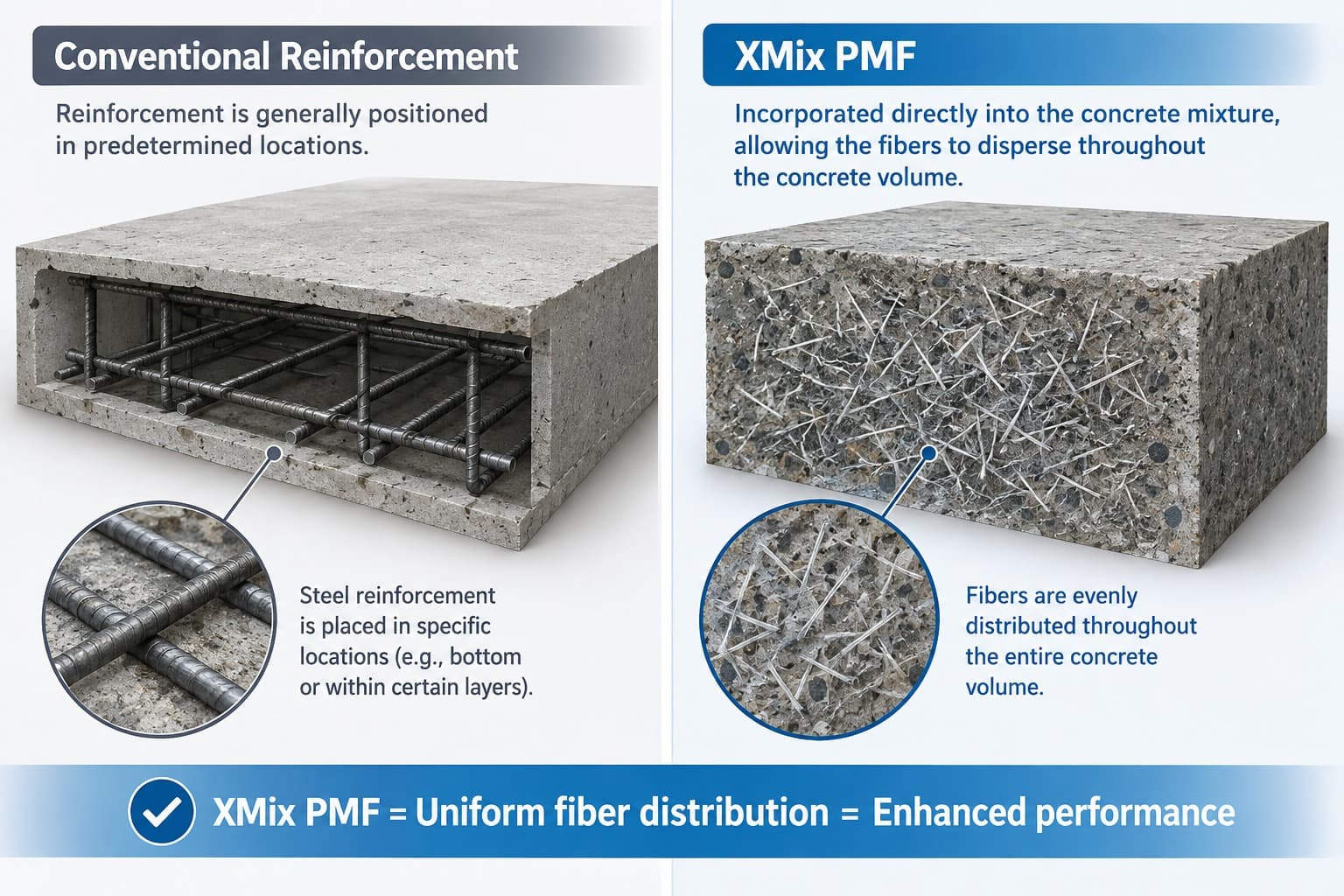

Unlike conventional reinforcement, which is generally positioned in predetermined locations, X- Mix PMF is incorporated directly into the concrete mixture, allowing the fibers to disperse throughout the concrete volume.

How X-Mix PMF Works

X-Mix PMF provides reinforcement in three dimensions through its distribution within the concrete matrix.

The fibers are designed to contribute to the concrete's post-cracking behavior, subject to the fiber characteristics, dosage, concrete composition, and verified performance.

The use of X-Mix PMF can also simplify reinforcement handling in applications where structural design permits the replacement of steel wire mesh.

Important engineering consideration: X-Mix PMF is not intended to replace all forms of structural reinforcement. Its suitability must be determined through the applicable structural design and project requirements.

X-Mix PMF offers several characteristics that make it a potential solution for specific concrete reinforcement applications.

X-Mix PMF provides distributed reinforcement throughout the concrete mixture.

This three-dimensional distribution can support crack-control strategies and post-cracking performance when the product is appropriately designed and tested for the intended application.

X-Mix PMF does not rust, eliminating the corrosion risk associated with steel fibers and steel mesh themselves.

This characteristic can be relevant in environments where reinforcement corrosion is a concern.

However, the overall durability of a concrete structure still depends on concrete quality, exposure conditions, cover, detailing, and other reinforcement systems.

X-Mix PMF is designed to disperse throughout the concrete mixture.

Following the recommended mixing procedure is essential to achieve appropriate fiber distribution and avoid localized fiber concentrations.

X-Mix PMF is developed for applications where structural synthetic fibers can replace steel wire mesh.

The replacement must be supported by an appropriate engineering design and the required performance verification.

X-Mix PMF can offer practical advantages in projects where handling, cutting, positioning, and supporting steel mesh create construction challenges.

The actual benefit depends on the project design, installation conditions, dosage, and site execution.

Product Reference: X-Mix PMF is designed to provide distributed reinforcement and support steel mesh replacement in suitable applications.

Selecting the appropriate reinforcement system depends on the structural requirements, loading conditions, construction method, and performance criteria.

X-Mix PMF is primarily intended for concrete applications where distributed structural synthetic fiber reinforcement is appropriate.

Industrial floors are frequently exposed to heavy equipment, storage loads, forklift traffic, and repeated operational activity.

Mix PMF can be considered for industrial floor applications where fiber reinforcement is included in the approved design.

Potential project benefits include:

• Distributed fiber reinforcement.
• Support for crack-control strategies.
• Simplified reinforcement installation in suitable designs.
• Corrosion-free synthetic fibers.

The required dosage and performance must be determined according to the floor design and loading conditions.

Concrete pavements, parking areas, driveways, and roadway structures may benefit from the appropriate use of structural fibers.

X-Mix PMF can be considered where the design requires distributed fiber reinforcement and the product's verified performance meets the project requirements.

The pavement design must account for traffic loading, slab thickness, joints, subgrade conditions, and the specified fiber performance.

Floors subjected to dynamic loads and heavy operational loads require careful consideration of their structural and serviceability requirements.

X-Mix PMF may be incorporated into an engineered concrete flooring system to provide the required fiber reinforcement.

The selection of X-Mix PMF should be supported by suitable testing and design verification, rather than relying solely on fiber dosage.

X-Mix PMF is identified in its product documentation for foundation layers and tunnel covering applications.

Its use in these projects requires assessment of the specific structural function, exposure conditions, construction method, and applicable project specifications.

X-Mix PMF is most appropriate when its technical characteristics and verified performance align with the requirements of the intended application.

The selection between structural synthetic fiber reinforcement and steel wire mesh depends on the intended structural function and design requirements.

X-Mix PMF provides an alternative reinforcement approach in suitable applications, while steel wire mesh remains relevant where specified by the structural design.

Engineering Consideration

X-Mix PMF should not be considered an automatic replacement for every steel reinforcement system.

The replacement of steel mesh requires evaluation of the structural requirements, applicable design methodology, and verified performance of the fiber-reinforced concrete.

X-Mix PMF is a high-performance structural synthetic macro fiber developed for concrete reinforcement applications.

X-Mix PMF is specified as complying with ASTM C1116, Type III, and EN 14889-2, according to the supplied technical data sheet.

Technical Note: Tensile strength and Young's modulus alone do not establish the structural equivalence of X-Mix PMF to steel mesh. Application-specific performance testing and engineering design remain necessary.

The performance of fiber-reinforced concrete depends on the interaction between the concrete matrix and the embedded fibers.

X-Mix PMF is designed to provide distributed structural synthetic fiber reinforcement.

Mix PMF can contribute to a crack-control strategy by distributing fibers throughout the concrete matrix.

The effectiveness of crack control depends on multiple factors, including:

• Concrete mix composition.
• Fiber dosage.
• Fiber geometry.
• Concrete shrinkage.
• Joint arrangement.
• Curing conditions.
• Structural loading.

The expected crack-control performance of X-Mix PMF should be established using the appropriate design and test data.

Structural macro fibers are used in applications where residual tensile performance after concrete cracking is relevant.

X-Mix PMF's suitability for a specific post-cracking performance requirement should be verified through the applicable test results and design methodology.

The supplied technical data sheet does not include CMOD residual flexural strength results, so specific performance values should not be stated without additional test documentation.

X-Mix PMF does not rust, which eliminates corrosion of the synthetic fibers themselves.

Nevertheless, fiber reinforcement does not independently guarantee concrete durability. Concrete permeability, cracking, environmental exposure, and conventional reinforcement protection must be addressed through the overall design.

The appropriate X-Mix PMF dosage depends on the intended application and required concrete performance.

The product technical data sheet specifies a dosage of up to 2–8 kg/m³, with the possibility of using other dosages for particular requirements following technical advice.

Factors Affecting X-Mix PMF Dosage

• Concrete grade and mix composition.
• Slab thickness and dimensions.
• Applied loads.
• Crack-control requirements.
• Required residual flexural performance.
• Aggregate size and grading.
• Mixing and placement conditions.

Workability Considerations

Increasing the dosage of X-Mix PMF may reduce workability and increase the cohesiveness of the concrete mixture.

Therefore, the concrete mix should be evaluated through trial batches to establish the appropriate dosage and mixing procedure.

Request edits

NCC X-Calibur technical support can assist in evaluating X-Mix PMF for specific project requirements.

Proper mixing is essential to achieve effective fiber distribution.

Recommended Procedure

Step 1: Add X-Mix PMF Directly to the Concrete Mix

X-Mix PMF should be added directly to the concrete mixture while mechanically mixing, either at the batching plant or in the truck mixer.

Step 2: Continue Mechanical Mixing

Mix for a minimum of 5 minutes after the addition of X-Mix PMF to ensure complete fiber distribution.

Step 3: Verify Concrete Uniformity

The concrete should be checked for appropriate fiber dispersion, workability, and consistency before placement.

Important Application Limitations

According to the product technical data sheet:

Maximum aggregate size: 32 mm.

X-Mix PMF must not be mixed into concrete by hand.

X-Mix PMF must not be used in place of structural reinforcement.

The selection of X-Mix PMF should be based on the specific requirements of each project. A suitable design process should consider:

The design engineer should establish the required structural capacity and reinforcement function.

The relevant fiber-reinforced concrete performance characteristics should be determined using appropriate testing and design procedures.

Floor loading, slab geometry, joints, support conditions, and environmental exposure should be evaluated.

Trial mixes can be used to assess workability, fiber distribution, and concrete performance under the intended production conditions.

X-Mix PMF should be selected as part of an integrated engineering approach, supported by project-specific design verification.

NCC X-Calibur provides concrete chemical solutions and technical support for construction applications.

Through X-Mix PMF, NCC X-Calibur offers a structural synthetic fiber solution for projects requiring distributed reinforcement in suitable concrete applications.

Our Approach

• Understanding project requirements.
• Supporting product selection.
• Reviewing dosage requirements.
• Assisting with trial mix evaluation.
• Providing technical guidance for product application.

The appropriate use of X-Mix PMF requires coordination between the project design team, concrete producer, and technical support specialists.

Macro Fiber Reinforced Concrete provides an alternative approach to reinforcement in applications where structural synthetic fibers are suitable.

X-Mix PMF is designed to support distributed reinforcement, provide corrosion-free synthetic fibers, and replace steel wire mesh in appropriate engineered applications.

Its use in industrial floors, pavements, storage areas, and other concrete structures should be guided by the project's structural requirements, verified performance, and application conditions.

By combining suitable product selection, proper mixing, and engineering design, X-Mix PMF from NCC X-Calibur can be considered as part of a performance-oriented approach to modern concrete construction.
